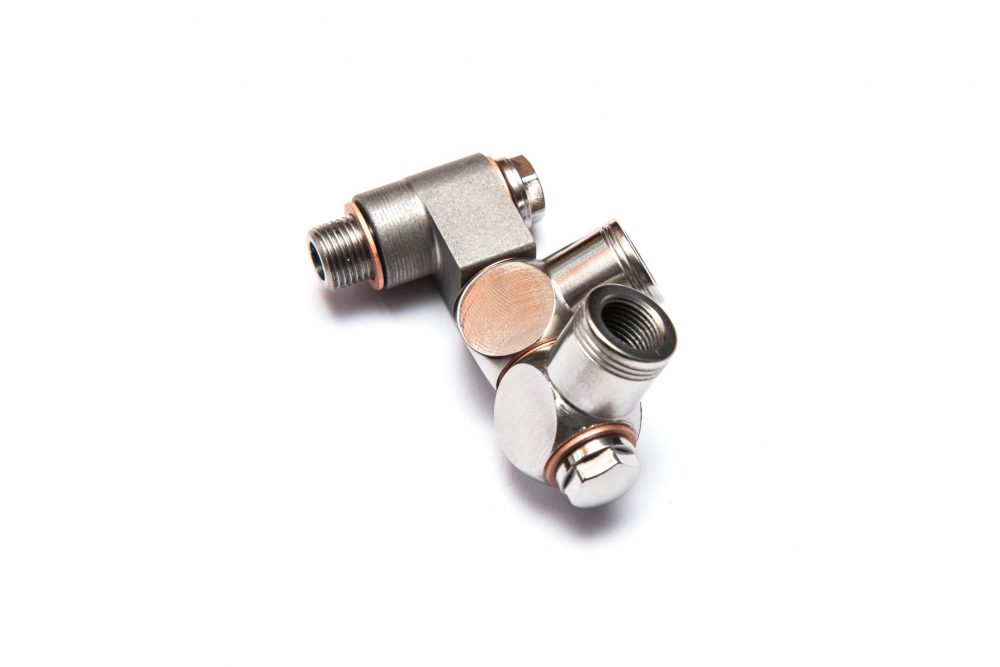

Description The Morgo multi point pressure switch adaptor is machined from stainless steel the fittings and bolt heads are polished. Supplied with copper sealing washers and a choice of thread types or drill your own to suit your needs. The adaptors are marked with rings grooves for identification. No ring groove : Not drilled, you put in what you need. Maximum thread diameter 1/2″ (12.7mm) 1 Ring groove : British Standard Cycle (3/8″ BSCY) 2 Ring grooves : National Pipe Straight (390 NPS) 3 Ring Grooves : British Standard Pipe (1/8″ BSP) As an example : To fit a Morgo Pressure Gauge to a Triumph T140 you would need a NPS bolt 1 NPS adaptor and 1 BSP adaptor. Early Triumphs would need a BSCY bolt 1 BSCY adaptor and 1 BSP adaptor.
