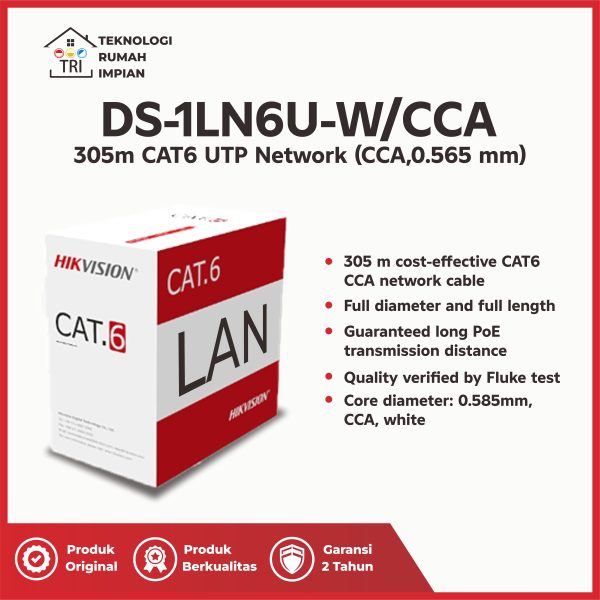

LAN Hikvision DS-1LN6U-W/CCA kabel UTP CAT 6 Putih 305 Meter
$58.39
$112.11
Deskripsi Model DS-1LN6U-W/CCA Hikvision Kabel LAN UTP Cat 6 305 Meter 23AWG Kabel LAN UTP Cat 6 di design Khusus untuk koneksi transfer data video IP Camera CCTV, di produksi di Pabrik Hangzhou Hikvision Digital Technology Co.,Ltd Model DS-1LN6U-W/CCA Category CAT. 6 CCA U/UTP 4x2x23AWG/1 PVC Conductor Material CCA（Copper content：27%） Nom.O.D.(mm) 0.585 up 0.01 down -0.01 Insulation Material Solid HDPE Diameter 1.05±0.05mm Rip-cord: Yes Drain wire: No Sheath Physical Properties: Before Aging Tensile Strength (Mpa) ≥13.5 Elongation(%) ≥150 Aging Period (℃×hrs) 100℃×24h×10d After Aging Tensile Strength(Mpa) ≥12.5 Elongation(%) ≥125 Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks Electrical Characteristics: 1.0-250.0MHz Impedance ((Ω) 100±15 1.0-250.0MHz Delay Skew (ns/100m) ≤45 DC Resistance (Ω/100m) max 9.38 DC Conductor Resistance Unbalance (%) max 5.0 Ambient temperature: -20℃ – 75℃
