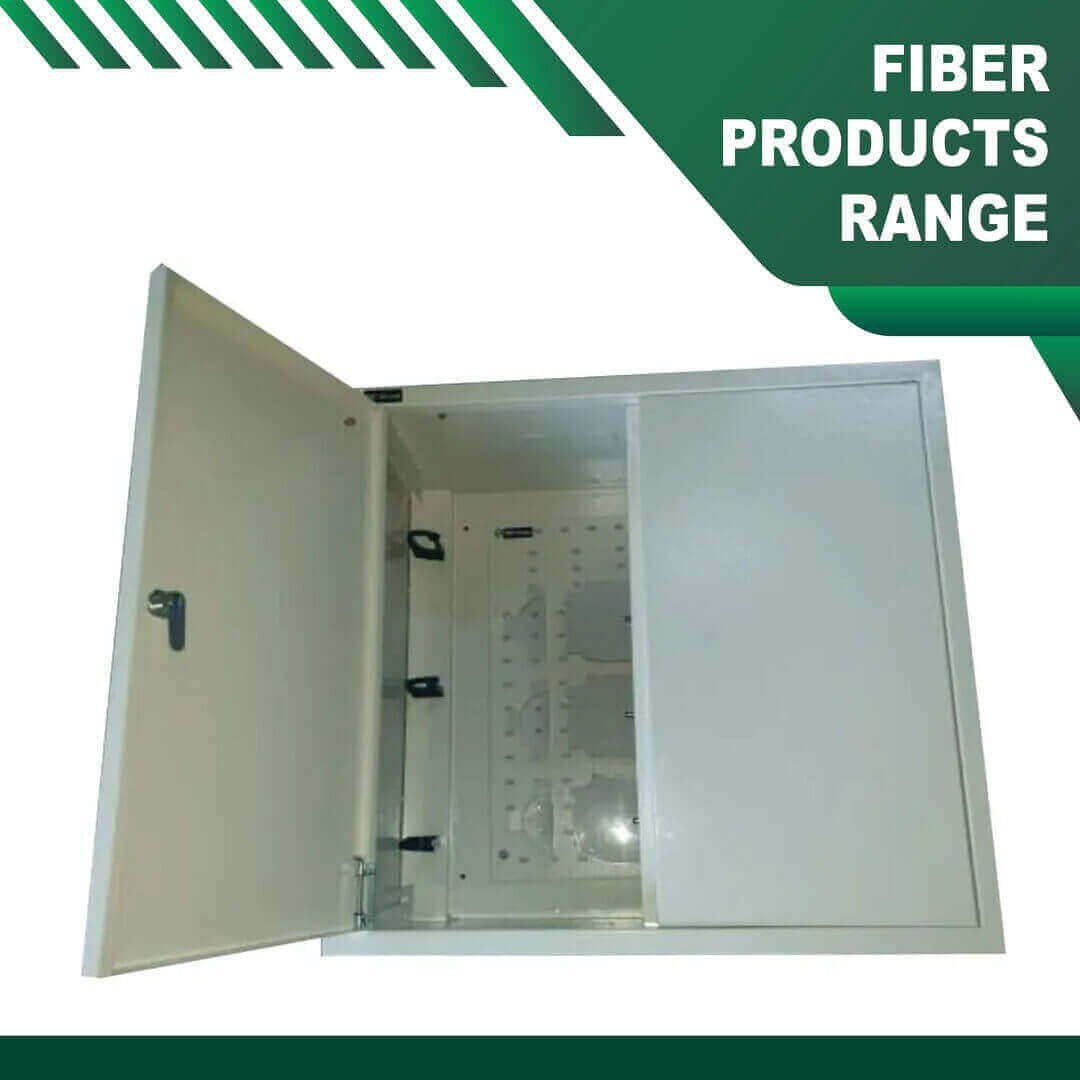

Optical distribution Frame ODF Wall Mounted 48core

TMT GLOBAL Optical distribution Frame ODF Wall Mounted 48core TMT GLOBAL provides high-quality Optical distribution Frame ODF Wall Mounted 48core SC LC single-mode multimode OS2 multimode OM2 OM3 OM4 fiber optic equipment for use in various industrial and building automation indoor and outdoor applications. They can be easily used with their flexible construction in narrow applications like CCTV systems, SMATV systems, audio-video intercom systems, public address systems, access control systems, burglar alarm systems, lighting control systems, gate automation systems, smart home automation, Optical distribution Frame ODF Wall Mounted 48core,building automation systems, computer systems, and many more ELV systems. The products have unique properties and benefits for different types of use.Optical distribution Frame ODF Wall Mounted 48core Features Low Insertion loss Low PDL High Return Loss Compact Design Wide Operating Wavelengths Wide Operating Temperature High Reliability and Stability Uniform Power Splitting Applications Passive Optical Networks (PON) Cable Television (CATV Links) Local Area Networks (LAN) Test Equipment’s Optical Signal Distribution FTTX Deployments (FTTP, FTTH, FTTN, FTTC, FTTB) OPTICAL PARAMETER’S Operating Wavelength : nm 1260 ~ 1650 Insertion Loss : Typ:16.8dB/Max: 17.8dB Channel Uniformity: Typ:2.0dB / Max: 2.5dB PDL: Typ:0.2dB / Max: 0.4dB Wavelength dependent loss: Typ:0.2dB / Max: 0.5dB Temperature stability: Typ:0.4dB / Max: 0.5dB Return Loss : Min. dB 50 Directivity : Min. dB 55 Operating Temperature : °C -40 ~ 85 Storage Temperature :°C 40 ~ 85 Fiber Length : 1.0 /0.1 or Customer specified Fiber Type :  G.652D,G.657A1/A2 Connector Type :LC/APC General Specification Material : Cold-Roll Stee Coating : Electrostatic painting Maximum Splice Tray : 12 Maximum splicing per Tray : 24 Splicing Capacity : 24-288 Core Operating temperature : -25℃ to 80℃ Atmospheric pressure : 70~-106Kpa Standard working wavelength : 850nm, 1310nm, 1550nm Dimensions （L*h*W) : 600X600X300/150MM Housing thickness : 1.5mm Durability : Lifetime Weight : 8KG Products ID : TMT-288CMD1
